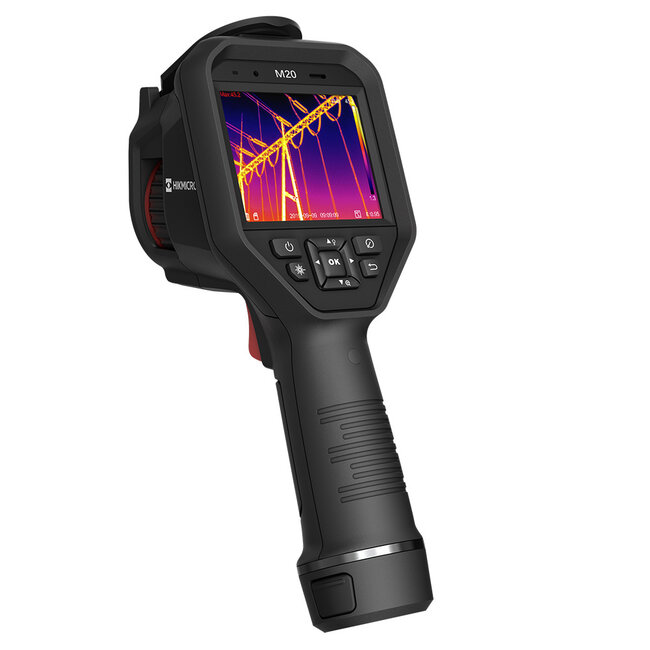

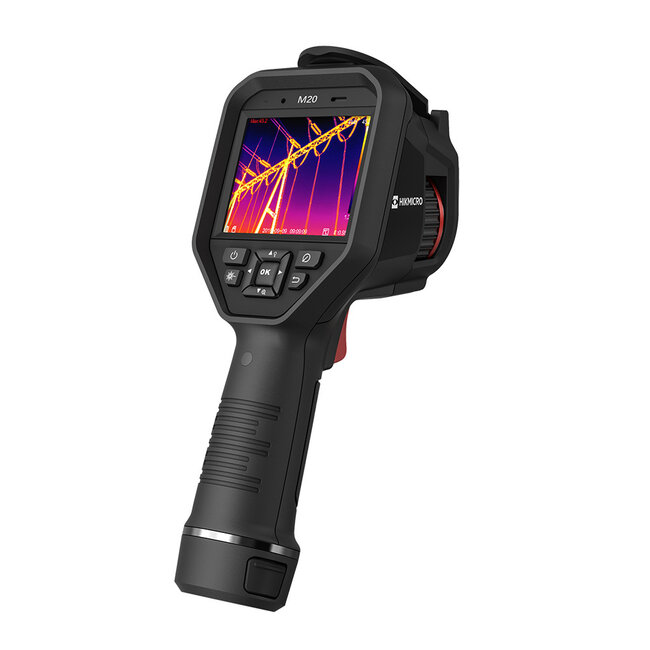

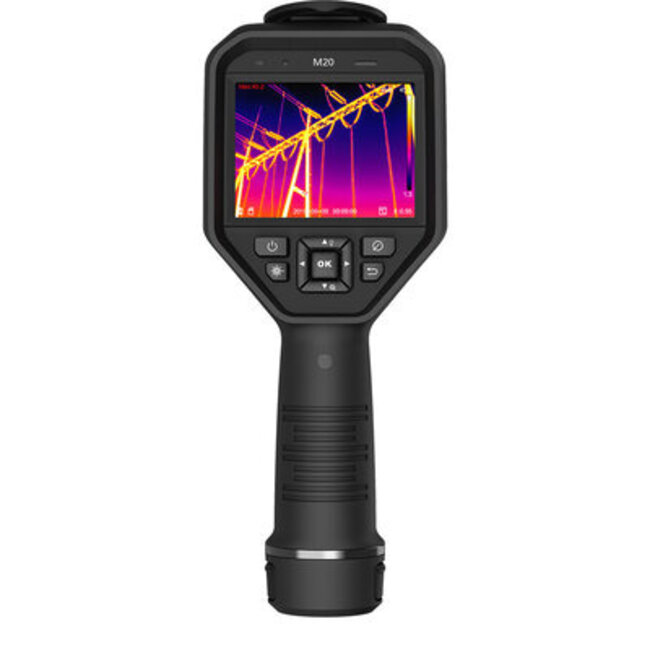

HIKMICRO M20 Thermal Camera | HM-TP22-7QF/W-M20

HIKMICRO M20 handheld thermography camera is specially designed for professional inspections. It’s equipped with a 256 × 192 resolution thermal detector and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.


Key Features:
- Thermal resolution: 256 x 192 (49.152 pixels)
- NETD : < 40mK (@ 25 °C,=1.0)
- Temperature measurement range : -20 °C - 550 °C
- Accuracy: Max (±2 °C or ±2%)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
- Manual focus
- 25 Hz image frequency
- 3.5’’ LCD touch screen display

Specifications:
- FOV (Field of View): 25° × 18.8°
- Digital Zoom: 1x / 2x / 4x / 8x
- Image modes: Thermal/Optical/Fusion/Picture-in-Picture
- Storage media: Removable Micro SD Card (16 GB)
- Laserpointer: Yes
- Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
- Bluetooth: Bluetooth 4.2
- Text comment: Max 200 Characters
- Voice comment: Max 60 Seconds
- Battery Operating Time: 5 Hours Continuous Running
- Protection Level: IP54
- Interface: USB TYPE-C
- Weight: ± 660 gram
- Dimensions: 244mm × 100mm × 104mm

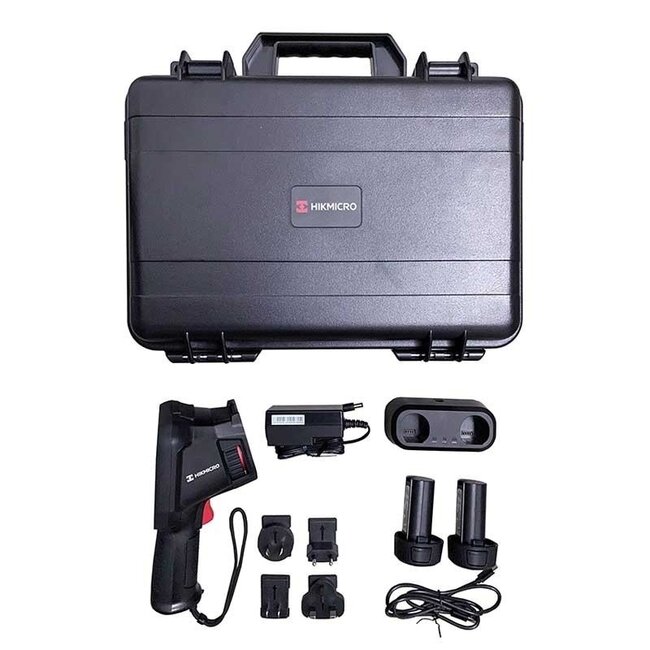

Packinglist:
- M20 Thermalcamera
- Quick start guide
- Adapters
- USB cable
- Power Adapter
- Battery
- Charging base
- Box
- Wrist strap
