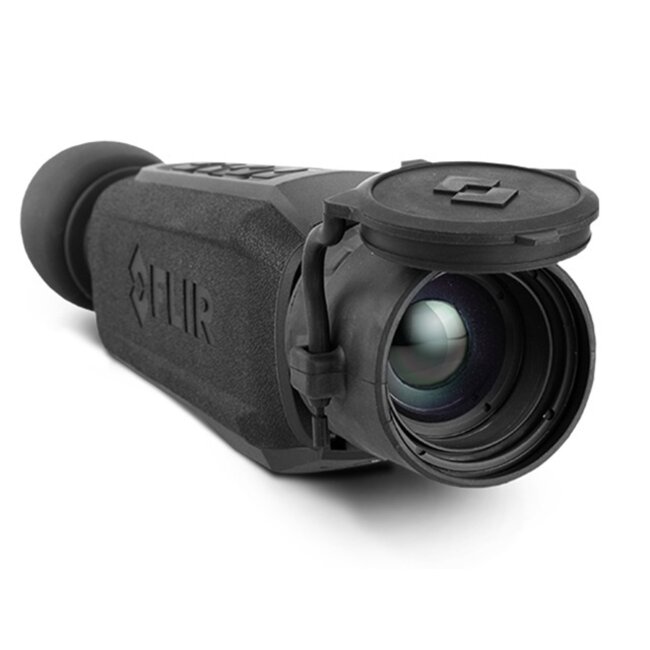

The FLIR Scion PTM466 is a professional thermal monocular in a rugged handheld housing with IP67 rating. Read more.
Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion® PTM packs high-performance thermal imaging into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.
Securely stream real-time thermal video to the command center via networked devices. Link powerful Scion PTM thermal imaging to integrated devices via Wi-Fi and network with other deployed smart sensors on the scene for enhanced, real-time situational awareness and centralized public safety information.
Available long-range lenses for the Scion family of thermal monoculars offers a new level of clarity and reach. High-performance thermal lenses ranging from 14-36 mm offer a choice between quick, close-proximity detection and fine-tuned, long-range surveillance. When the mission demands reliable vision from a distance, premium Scion lenses can detect targets up to 1420 m away. 25 mm and 36 mm Scion optics leverage a manual focus ring to achieve a new level of clarity among FLIR
thermal monoculars.
Sharp, 60 Hz thermal imaging powered by the breakthrough FLIR Boson™ thermal core
FLIR outfits law enforcement professionals with tools to counter unseen threats. Able to perform at any time of day, thermal imaging pierces complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of FLIR’s Boson thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.
| General | SCION PTM 166 | SCION PTM 336 | SCION PTM 366 | SCION PTM 466 |
| Detector resolution | 640 x 512 | 320 × 256 | 640 × 512 | 640 × 512 |
| Refresh Rate | 60Hz | 60Hz | 60Hz | 60Hz |
| Lens System | 14 mm | 25 mm | 25 mm | 36 mm |
| Field of View | 31° × 24° | 9° × 6.5° | 18° × 13° | 12° × 9° |
| Optical magnification | 0.7x | 2.6x | 1.3x | 2.0x |
| Digital Zoom | 1X | 2X | 4X | 8X | 1X | 2X | 4X | 1X | 2X | 4X | 8X | 1X | 2X | 4X | 8X |
| Focus | ∞ | Manual | Manual | Manual |
| GPS | yes | yes | yes | yes |
| Detection range* | 550 meter | 1000 meter | 1000 meter | 1420 meter |
| Size | 227 × 76.8 × 60.5 mm | 239 × 76.8 × 60.5 mm | 239 × 76.8 × 60.5 mm | 278 × 77 × 73 mm |
